Product Features
- Welds vehicle chassis, H beams, I beams and box beams
- Tracks and welds non-linear surfaces
- Easy tacking before welding with the tack mechanism

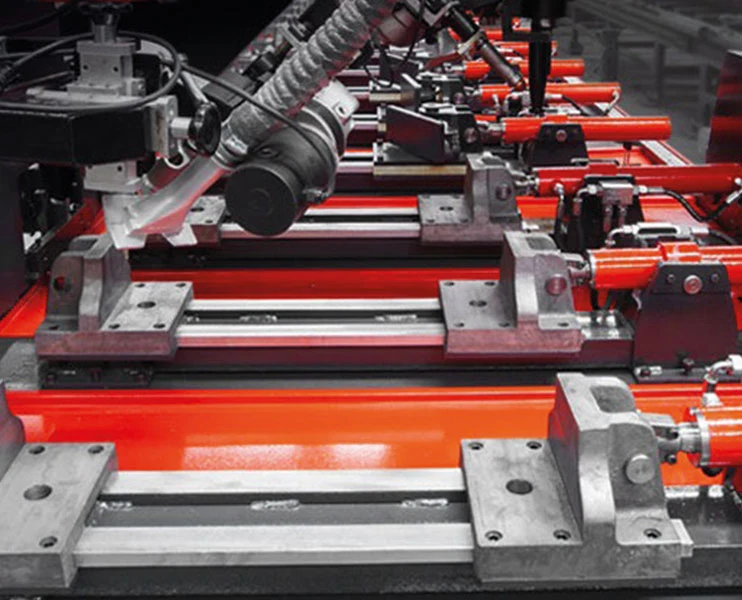

- Holds the workpiece in place with the fixture system
- Straightens and bends plates with hydraulic press jaws on the fixture
- Minimum distortion when welding under hydraulic press jaws
- Welds two surfaces at the same time
- Can create camber in the vertical direction
- Single-station or two-station operation
- Welds sections up to 500x2000 mm
- Works with MIG/MAG and submerged arc systems
- Hydraulic cylinders controlled by levers, each lever fitted with a pressure safety valve.
- Pressure safety valves let the workpiece be clamped at exactly the required force
- The tack bridge is moved manually and positioned by the operator; its hydraulic cylinders press from above to achieve the required dimension.
