Chassis & Beam Welding Systems

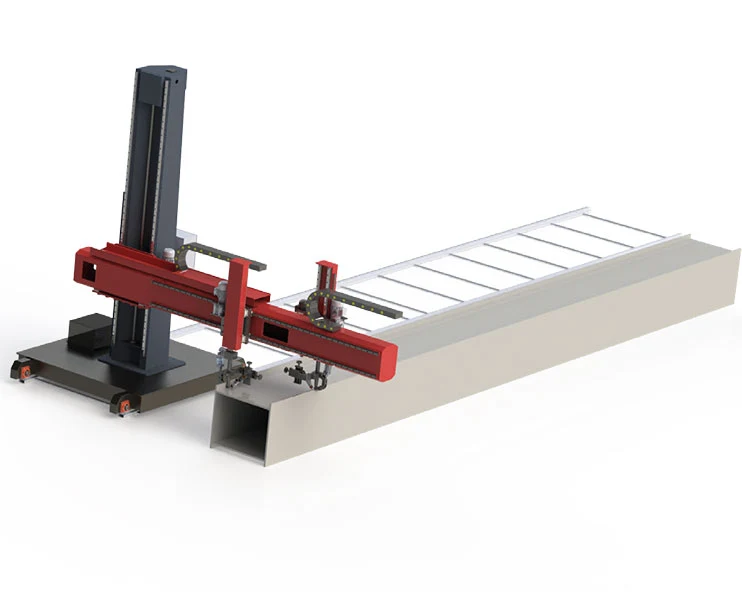

Column & Boom Beam Welding System

Product CodeWKBK
Welds vehicle chassis, H beams, I beams and box beams
Tracks and welds non-linear surfaces
Welds workpieces that have already been tacked

Pricing for this product is prepared especially for you based on your request.

Contact Us +90 (332) 502 08 01

WKBK

Product Description

Product Features

  • Welds vehicle chassis, H beams, I beams and box beams
  • Tracks and welds non-linear surfaces
  • Welds workpieces that have already been tacked
  • Welds two surfaces at the same time
  • Welds linear beam seams with travel movement
  • Welds plate joints with torch movement on the boom
  • Single-station or two-station operation
  • Welds sections up to 3000x3000 mm
  • Works with MIG/MAG and submerged arc systems

Technical Data

Technical Data WKBK-3x3 WKBK-4x4 WKBK-5x5
Maximum Workpiece Dimensions 3000x3000 4000x4000 5000x5000
Overall Machine Dimensions 2560x4000x3700 mm 2650x5000x4700 mm 2560x4000x3700 mm

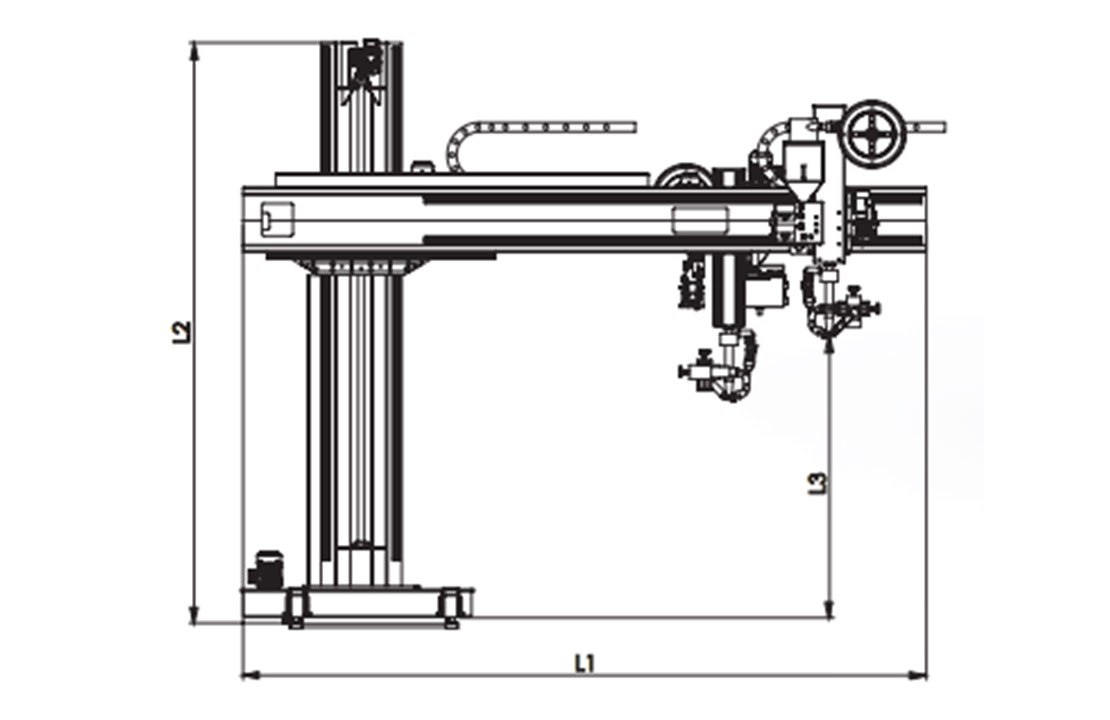

Technical Drawing

Column & Boom Beam Welding System technical drawing
