Circular Welding Systems

Circular Welding Machine

Product CodeWDKM
Single-torch or twin-torch operation
Circular and longitudinal welding
Adjustable workpiece length

Pricing for this product is prepared especially for you based on your request.

Contact Us +90 (332) 502 08 01

WDKM

Product Description

Product Features

  • Single-torch or twin-torch operation
  • Circular and longitudinal welding
  • Adjustable workpiece length
  • Material loading mechanism
  • MIG/MAG, submerged arc and TIG welding
  • Adjustable welding and travel speed
  • Digital speed display on the control
  • Floor-mounted type

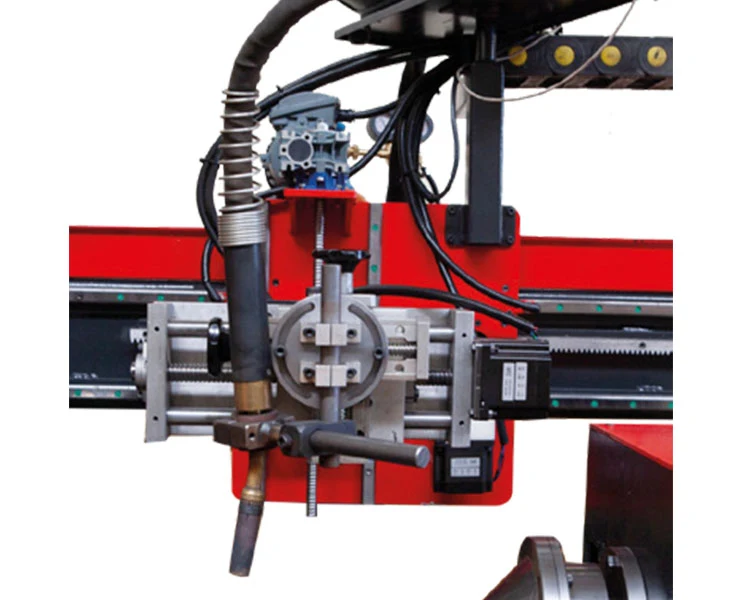

  • Mechanical T-slide system for precise torch positioning
  • Pneumatic tack clamping system
  • Push-button or pedal tack clamping

Technical Data

Technical Data WDKM- 1000 WDKM-2000 WDKM-3000
Number of Welding Heads Single Single - Double Head Single - Double Head
Workpiece Dimensions Ø50 / Ø600 mm Ø50 / Ø600 mm Ø50 / Ø600 mm
Overall Machine Dimensions 2500x1200x1600 mm 3500x1200x1600 mm 4500x1200x1600 mm

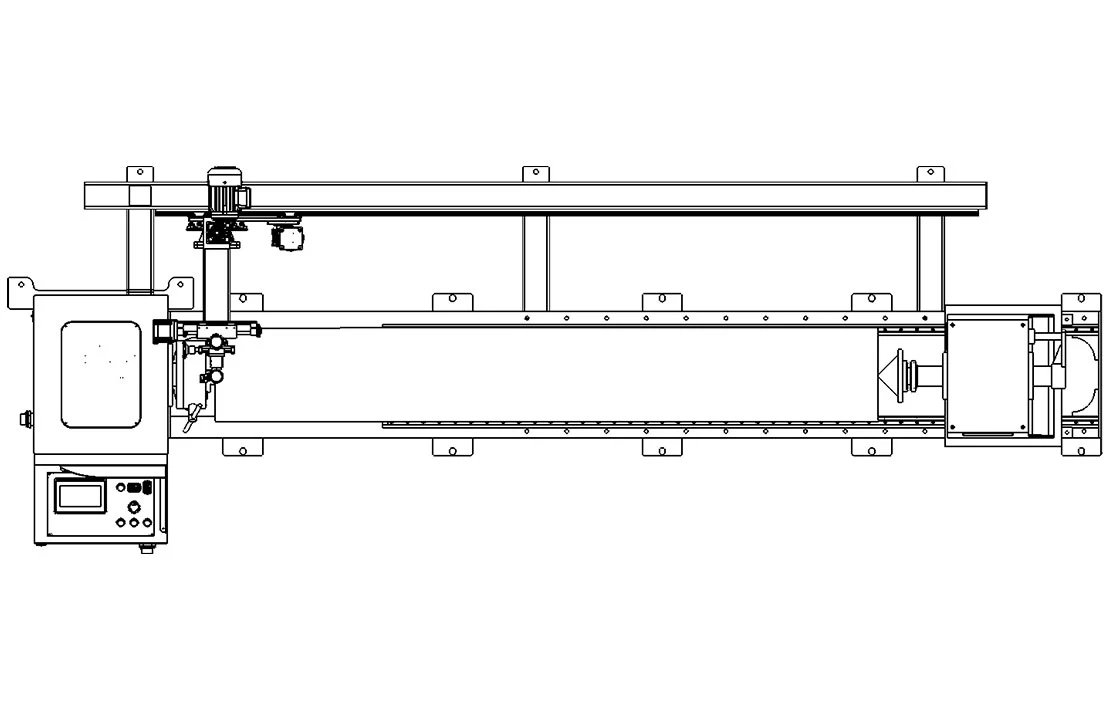

Technical Drawing

Circular Welding Machine technical drawing
